The Big Boy

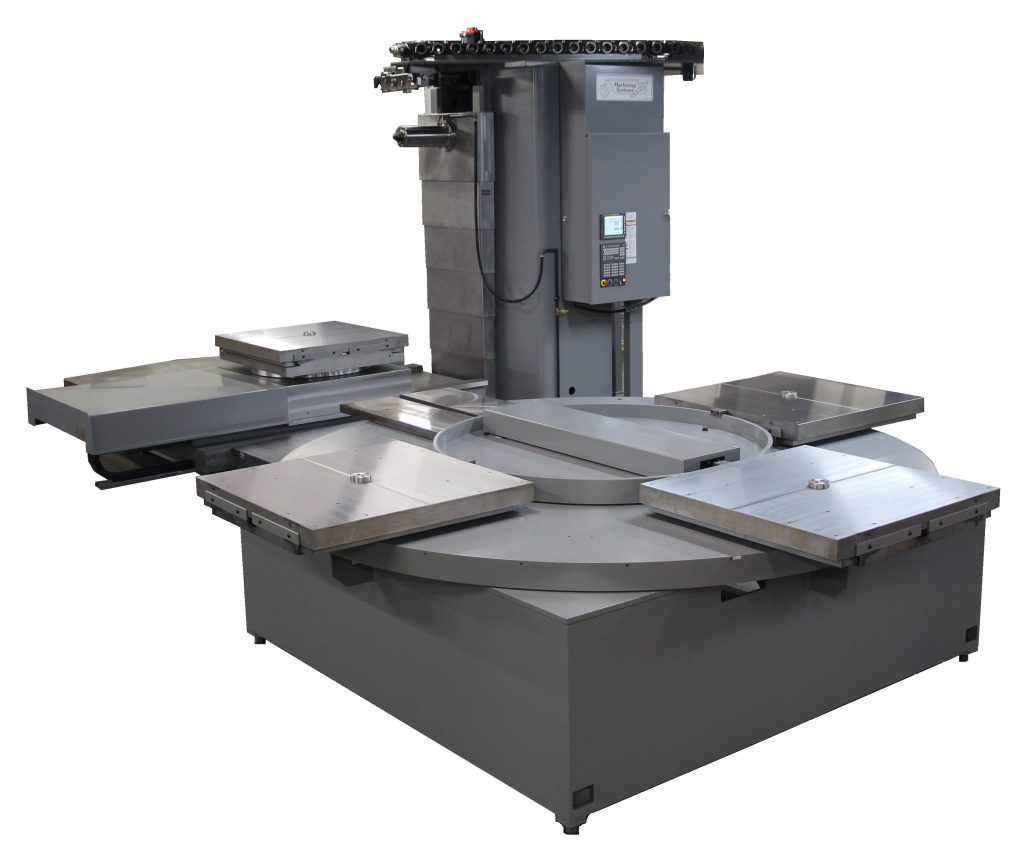

HMC-300 Horizontal Machining Center. Pallet Changer view.

General Specifications

X Axis 120 [3048
Y Axis 72" [
Z Axis 58" [1473mm]
B Axis 360 degree

Power MTD 30hp [
Speed 0-3000 RPM standard*
Taper CV 50
* High Torque optional

INDEX TABLE B (standard)
1 degree
 48" x 48" [1219
mm x 1219mm] table top
 15,000 Lbs [6804
KG] Table load capacity

Big League

With available travels up to 120" in X axis and 90" in Y axis and a very generous part capacity this machine can handle the biggest jobs. A large 48" square table top is standard and a 4 station pallet changer option is available to allow for easy setup of the next part while the machine continues to machine.   Couple this with an optional High Torque spindle to increase your metal removal capabilities whether you are drilling or milling.

Some of the available options include 720 position (1/2 degree) table, 360,000 position contouring table.

Contact us for other available options or see OPTIONS tab.
(HMC-300 with some options shown and some guards removed).


CNC Control

Each machine is fitted with a custom featured up to date Fanuc I series control and servo package.

The state of art Fanuc i series CNC uses surface mount technologies that allows the compact
CNC to be mounted behind the flat panel color LCD display. High speed data transfer is facilitated
via the FSSB (fiber-optic) that connects the servo drives and spindle* to the CNC.  The I/O is daisy
chained to the CNC using a high speed link.  All this provides performance and reliability for years to come.

Some of the available control options.

  • Rigid Tapping
  • 48+ Work piece coordinate offsets
  • 400 Tool offsets with wear adjustments
  • Programmable spindle orient
  • Programmable chip conveyor

Contact the factory for machine specific options.




48 tool storage standard.
50Lbs [
22.7kG] capacity
Max diameter 10" [
254mm] with adjacent
pockets empty.
76 tool storage optional.

 PALLET CHANGER (optional)
4 stations - pallets
 48" x 48" [1219
mm x 1219mm]

Basic machine
Weight 97,500 Lbs. [44,225kG]
Footprint 31.7' x 21.8' [9.7m x 6.64m]

M.S. Machining Systems, Inc.


An HMC-200 has a unique balance of size and performance with an optional bar spindle. The BAR spindle allows for more flexible tool access inside parts, standardizes tool length, and simplifies the machining operations.

Saves You Time

Built to last. Easy to maintain.
